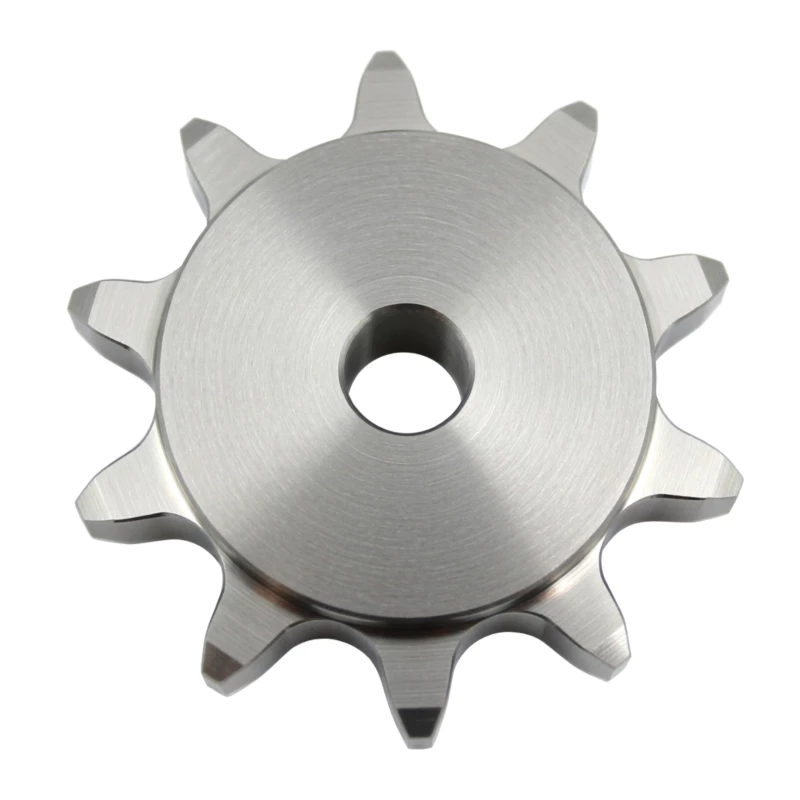

Double-Pitch Sprocket NK2040RB / NK2050RB

Double-Pitch Sprocket NK2040RB / NK2050RB

그만큼 NK2040RB / NK2050RB double-pitch sprocket (pitch 25.4 / 31.75 mm) is purpose-engineered for slow-speed conveyor and material-handling chains (C2040 / C2050 series). Its double-pitch design reduces component count and costs in long-centre conveyor runs, with C45 steel construction, hardened tooth flanks (HRC 50–60), and stock bore design for quick shaft mounting across Z=7 – 30 tooth counts.

제품 코드: 6eab892d6a66 범주: , , 꼬리표: , , , ,

설명

NK2040RB / NK2050RB Double Pitch Sprocket

Technical Specifications — NK2040RB / NK2050RB Double-Pitch Sprocket

매개변수 값 메모
Chain Series C2040 / C2050 Double-pitch conveyor chain
정점 25.4 / 31.75 mm Double of ANSI standard
Tooth Range Z=7 – 30
허브 스타일 Stock Bore (B Type) Finished bore on request
재료 C45 탄소강
치아 경도 HRC 50–60 유도 경화
표면 Black Oxide / Zinc Plated
Standard ANSI B29.1 (double-pitch)

Features & Advantages

1
Reduced Component Count
Double-pitch design allows twice the pitch between links — fewer sprockets and chain joints per metre of conveyor, lowering total drive cost by up to 30%.
2
Hardened for Conveyor Demands
Induction-hardened tooth flanks to HRC 50–60 resist the abrasive wear patterns typical of slow-speed, high-load conveyor applications.
3
⚖️ Lower Weight, Same Pitch Circle
Compared to equivalent standard-pitch sprockets, double-pitch variants are lighter, reducing rotational inertia and bearing loads in start-stop conveyor cycles.
4
Stock Bore for Quick Fit
Standard stock bore machined to drawing allows rapid installation on common shaft diameters — critical for minimising conveyor downtime in logistics and food processing facilities.

응용 프로그램

컨베이어 시스템

컨베이어 시스템
Long-centre flat-top and slat conveyors in warehousing and distribution centres
Food Processing Lines

Food Processing Lines
Accumulation conveyors, tunnel washer drives, and cooling conveyors
Packaging & Logistics

Packaging & Logistics
Sortation, accumulation, and indexing conveyor drives
Agricultural Handling

Agricultural Handling
Grain elevator legs, cleaner conveyor drives, and bin-fill systems

고객 리뷰

Greg H.  ★★★★★ 호주
“Replaced worn double-pitch sprockets on our carton conveyor with NK2040RB / NK2050RB — installation was straightforward and the conveyor runs quieter than before.”
NK2040RB / NK2050RB Z=9 · March 2025
Lars S.  ★★★★★ Sweden
“Good dimensional accuracy on the double-pitch tooth profile. Chain engagement is smooth with no clicking or vibration.”
NK2040RB / NK2050RB Z=12 · January 2025
Roberto G.  ★★★★☆ Italy
“Solid product. Delivery was slightly delayed but quality was worth the wait. Will use again.”
NK2040RB / NK2050RB Z=10 · February 2025
Wei C.  ★★★★★ 중국
“We use these on our logistics conveyor systems — consistent quality across repeated orders, excellent supplier.”
NK2040RB / NK2050RB Z=8 · April 2025

자주 묻는 질문

►  Can I use a double-pitch sprocket with a standard single-pitch chain?
No. Double-pitch sprockets are designed exclusively for double-pitch conveyor chain. Using standard single-pitch chain on a double-pitch sprocket will cause incorrect meshing, rapid wear, and potential chain derailment.
►  What is the difference between RB and SB suffix?
RB indicates round-barrel rollers (standard for conveyor chain). SB indicates small-barrel (slimmer roller profile). The chain and sprocket suffix must match.
►  Are finished bore versions available?
Yes. Specify shaft diameter and keyway at order. Standard lead time for finished bore double-pitch sprockets is 5–7 days.
►  What is the maximum shaft speed for double-pitch sprockets?
Double-pitch sprockets are optimised for slow speeds (typically 10–60 m/min chain speed). For high-speed drives, use standard single-pitch chain instead.
►  Are stainless steel double-pitch sprockets available?
Yes, SS304 double-pitch sprockets are available for food-grade conveyor applications. Contact us for lead time and pricing.
  1. Verify shaft diameter against stock bore dimension; machine finished bore if required.
  2. Position sprocket on shaft and align with the opposing end of the conveyor run using a laser or wire-line method.
  3. Install double-pitch conveyor chain; set tension with 1–2% sag on the return strand.
  4. Operate the conveyor at slow speed before full-load; check for chain-to-sprocket tracking alignment.
✓ ISO 9001:2015✓ ANSI B29.1✓ ISO/DIN 8187✓ JIS B 1801✓ BS/DIN 표준✓ 영국 표준
